Rake 29”

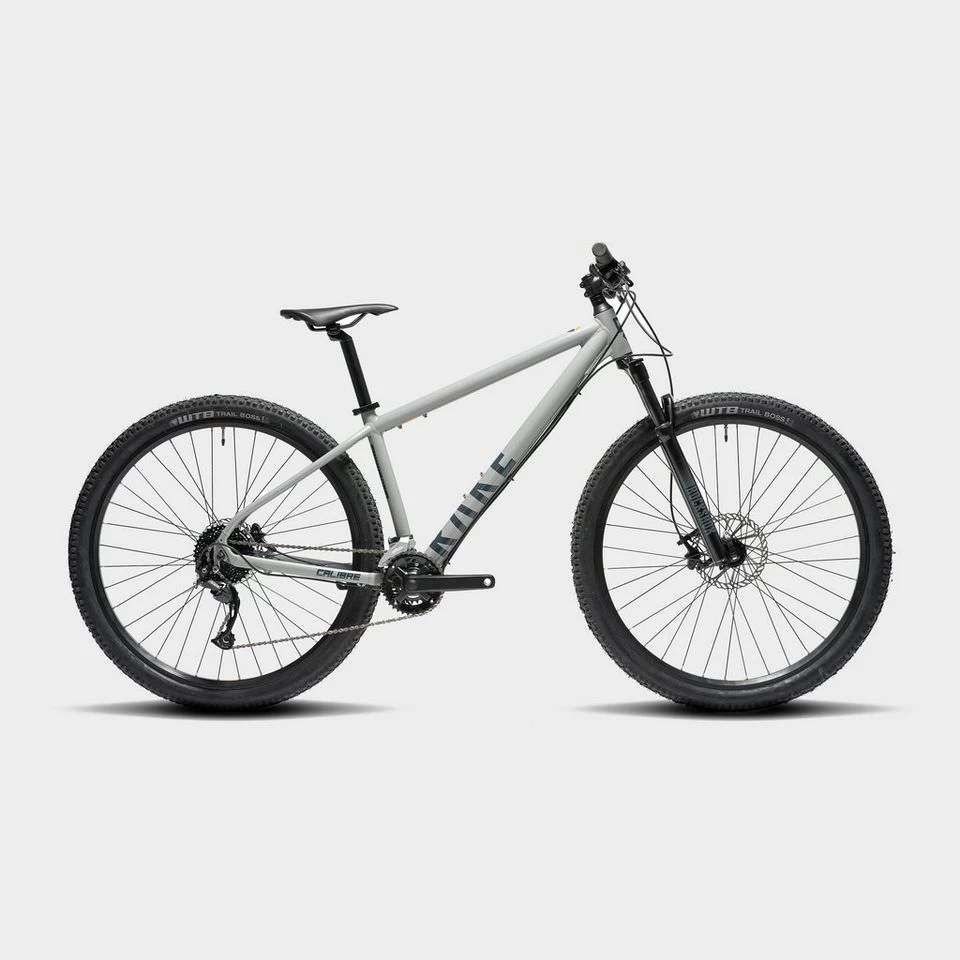

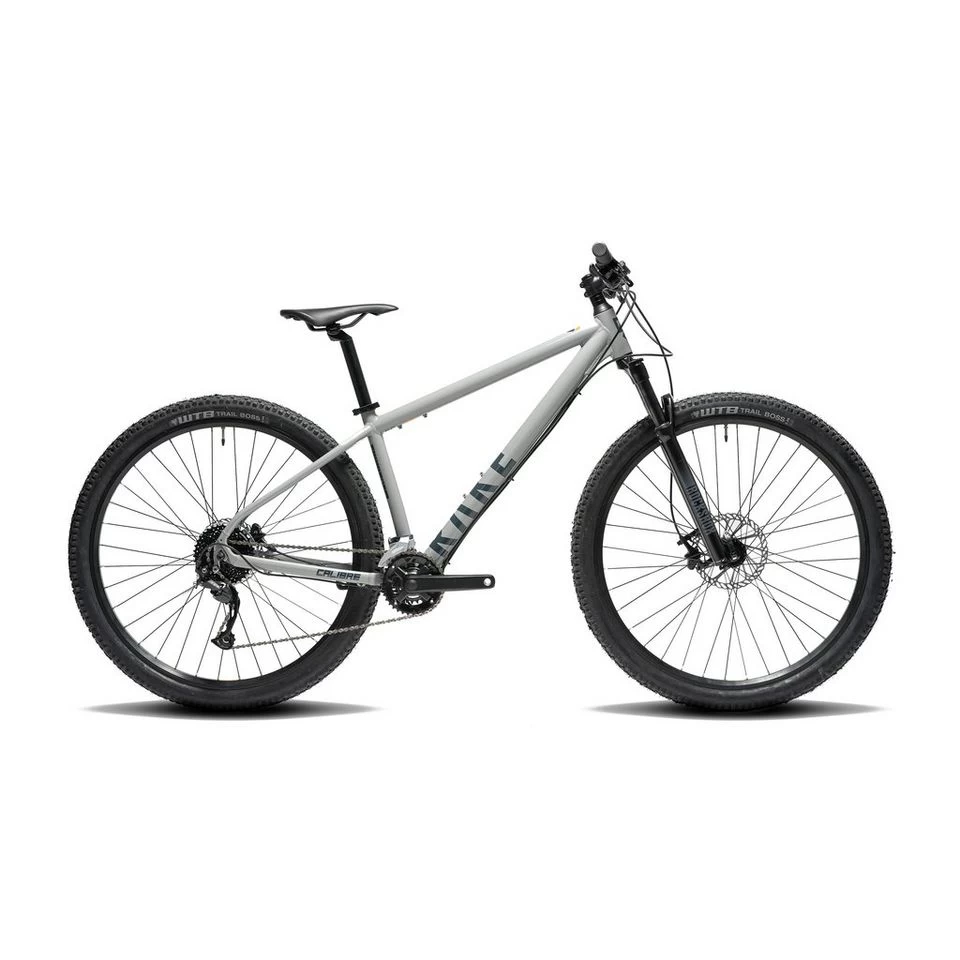

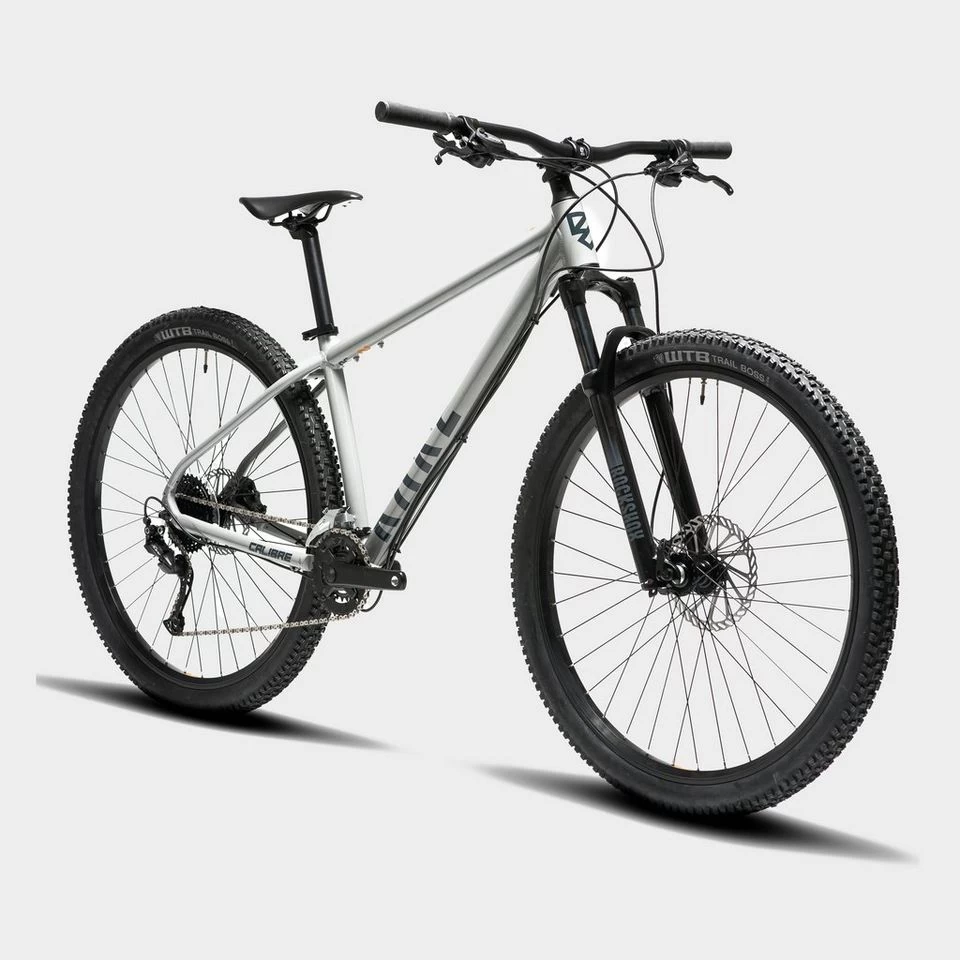

The Calibre Rake is a serious hardtail mountain bike equipped with reliable parts from Shimano and RockShox. It’s built to be a tough and confidence inspiring singletrack rocket. The perfect 29er for getting off-road and ideal for riders that don’t want the expense and maintenance associated with full suspension bikes.

The Rake is our durable and affordable 29er. The large 29” wheels make this bike fast rolling over any terrain. It’s got a solid 6061 Alu tube set, refined geometry, and a selection of components that you can count on. We’ve steepened the seat angle to improve its climbing ability and increased its reach to create a more stable and composed bike.

The RockShox Judy forks with adjustable rebound damping paired with the grippy WTB tyres allow you to push your riding ability to the limit and the Clarks M2 hydraulic brakes give you the stopping power to keep you composed and controlled in all conditions.

A relaxed headtube combined with a steep seat angle and a long top tube create a composed ride that climbs and descends confidently. It’s a great choice for anyone starting out mountain biking or looking to upgrade to a modern trail bike on a sensible budget.

Feature Highlights

Calibre hardtail frame – A lightweight alloy frame with balanced geometry for efficient climbs and confident descents

100mm RockShox Judy suspension fork – A capable air sprung trail fork with adjustable rebound damping

Clarks M2 hydraulic disc brakes – Smooth and responsive brakes that represent awesome value

WTB Trail Boss tyres– An all-round trail tyre that excels on loose and rocky surfaces

About Calibre

Calibre Bikes have a simple ethos: to build high-quality road and mountain bikes, that are affordable and fun to ride. Thoughtful and innovative design, with great attention paid to geometry and spec, makes Calibre an award-winning brand that leads the pack.

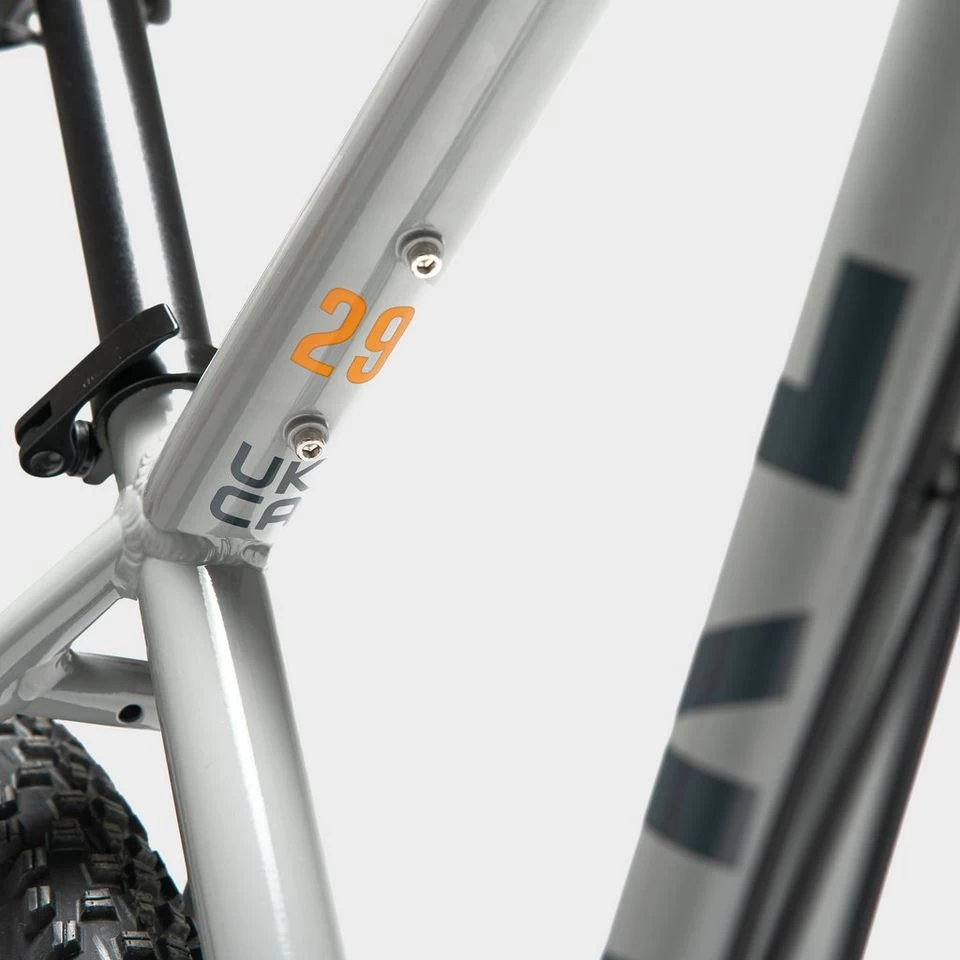

Frame: Alu 6061 29”, 135 QR, Post-mount disc, 44mm headtube

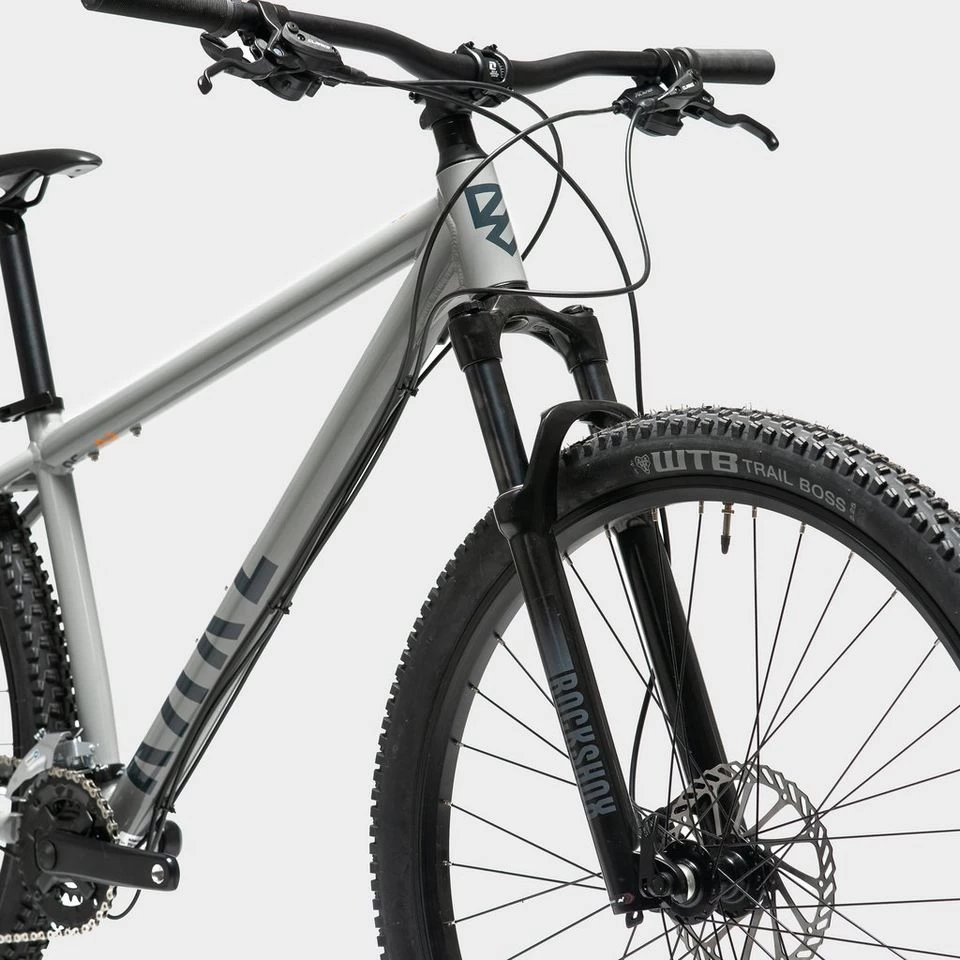

Fork: RockShox FS-Judy TK 29 QR, Rebound adjust, 100mm travel

Handlebar: Calibre Trail, Alloy 780mm wide, 20mm upsweep, 6°backsweep, 31.8mm clamp

Stem: Calibre Trail, 31.8mm clamp, 45mm extension

Grips: Calibre Trail, Single lock-on, soft compound, integrated bar end

Headset: Semi-integrated, ZS44

Saddle: Calibre Trail, steel rails

Seatpost: Calibre Trail 30.9 x 350mm

Seatclamp: Calibre QR 34.9MM

Chainset:  Calibre 175mm 22x36T

Pedals: Flat pedals

Bottom Bracket: Square taper 73mm BB

Drivetrain: Shimano 18 speed

Cassette: Shimano 9 speed Acera 11-36T

Chain: KM  X9

Shifter Right: Shimano Alivio 9 speed for 2×9

Shifter Left: Shimano Alivio 2 speed for 2×9

Rear Derailleur: Shimano Alivio 9 speed direct mount

Front Derailleur: Shimano Dual pull 34.9 – 31.8 / 36-14T

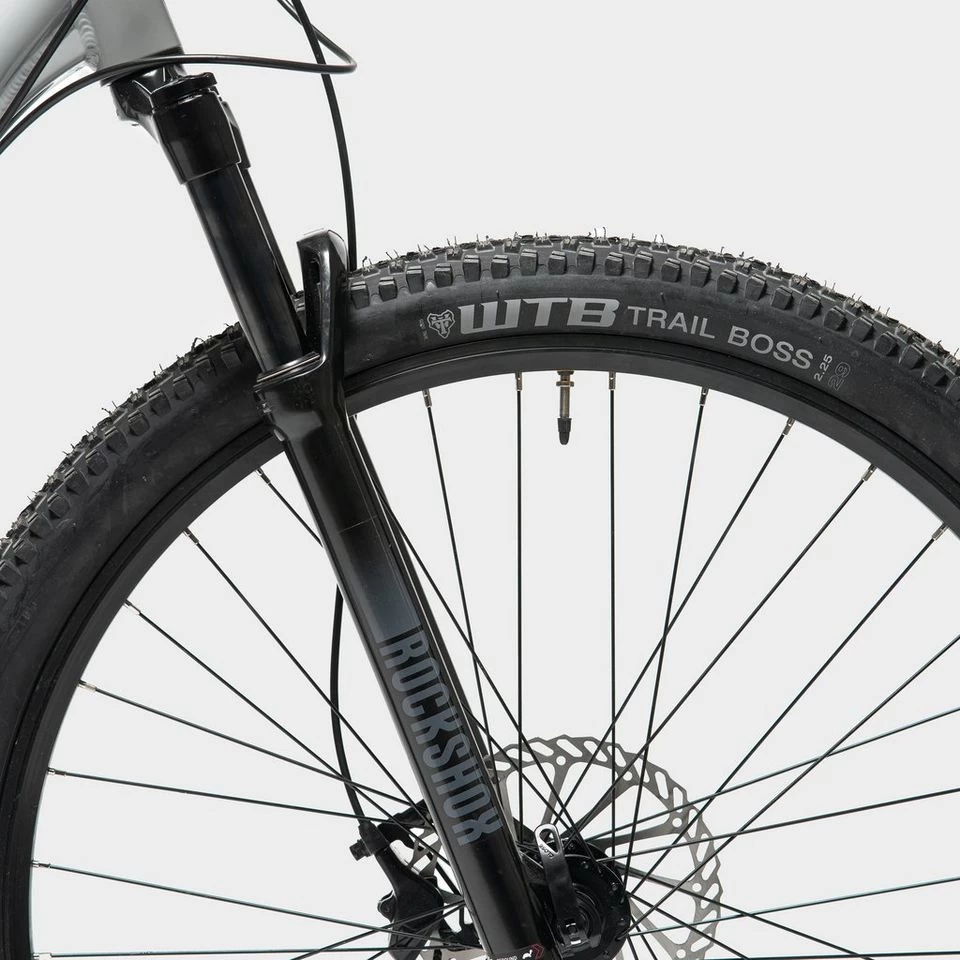

Tyres: WTB Trail Boss Comp 29” x 2.25” W110-0787

Rims: 29”, 25mm wide, 32h, alu double wall

Front Hub: Shun Feng, SF-A217F, Alu, black, 36h, 6 bolt disc, 100mm QR

Rear Hub: Shun Feng, SF- A217R, Alu, black, 36h, 6 bolt disc, 135 QR

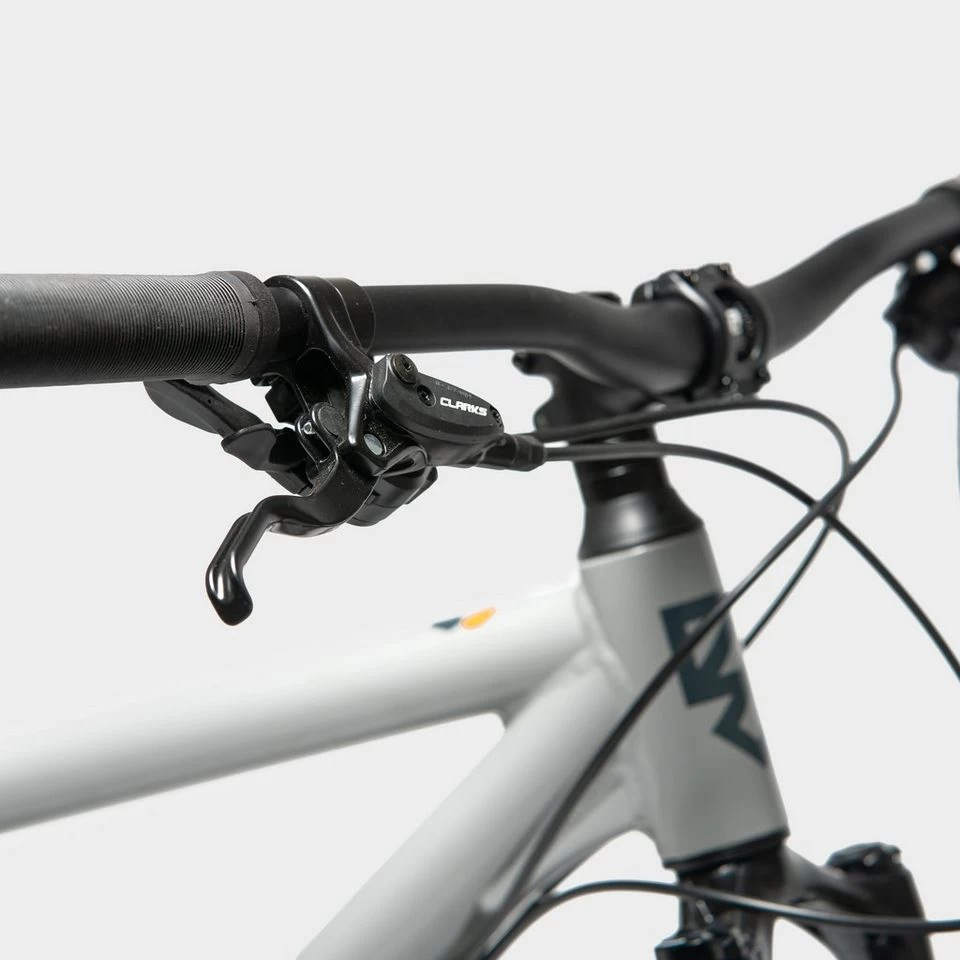

Front Brake: Clarks M2 Hydraulic disc

Rear Brake: Clarks M2 Hydraulic disc

Front Rotor: Clarks Wavey 180mm

Rear Rotor: Clarks Wavey 160mm

Order your bike to be delivered to your home or collect it from a GO Outdoors store to access some great benefits.

Please Note: Due to ongoing issues in the supply chain, this bike is subject to specification changes without notice. Any changes made will be using equivalent or higher quality parts.

**Some minor assembly is required. Consult our assembly guide for assistance.

Unfortunately, we are not able to process faulty or warranty bike returns through our warehouse. If your bike develops a fault, please take it to your nearest GO Outdoors store where we have a full workshop and trained mechanics who will be able to assist you.

Please note, this excludes Hathersage and Southport stores.
